Product Information

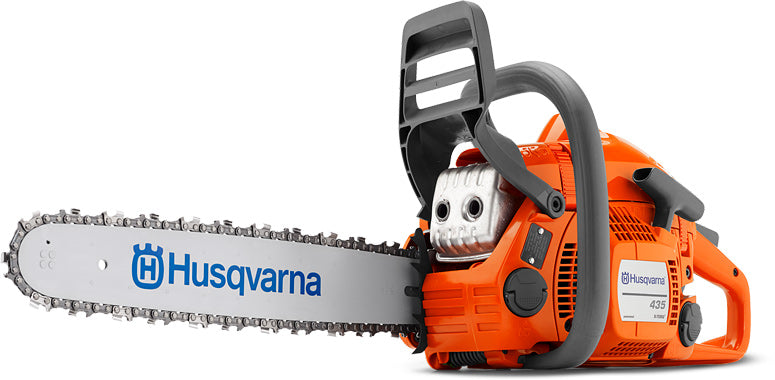

Second generation lightweight and efficient all-round saw ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Starts easily also with a slower pull, comes with flip-up tank caps. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with fuel pump and Auto return stop switch for easier starting.

Specification

SKU 967155475
MANUFACTURER Husqvarna
CHAINSAW OPTIONS Easy Start
WEIGHT 2.6kg - 5kg
ENGINE CAPACITY 40cc - 49cc
CUTTING LENGTH: 15" (38cm) - 16" (40cm)
ENGINE TYPE 2-Stroke

Features

Air Injection
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.

Quick-release air filter
Facilitates cleaning and replacement of the air filter.


Ergonomic rear handle
Increased comfort with soft inlay, ergonomic trigger and assymetrical handle.


X-Torq®
Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.


Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.


Felling marks
Distinct felling marks for better felling precision.



Additional Features

  • Side-mounted chain tensioner Side-mounted chain tensioner makes chain adjustment quick and easy.
  • Visible fuel level Transparent fuel indicator makes it easy to check fuel level.
  • Fuel pump Fuel pump designed for easy starting.
  • Snap-lock cylinder cover Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
  • Three-piece crankshaft Forged three-piece crankshaft for maximum durability for the toughest applications.
  • Easy to start Combined start/stop switch, Smart Start® and fuel pump make the saw very easy to start.
  • Inertia chain brake Effective inertia-activated chain brake.
  • LowVib® Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.



Technical data


Engine specification
Cylinder displacement 40.9 cm³ / 2.5 cu.inch
Cylinder bore 41 mm / 1.61 inch
Cylinder stroke 31 mm / 1.22 inch
Power output 1.6 kW
Maximum power speed 9000 rpm
Fuel tank volume 0.37 lit / 12.51 fl oz
Fuel consumption 652 g/kWh
Ignition module air gap 0.3 mm / 0.01 "
Idling speed 2900 rpm
Spark plug Champion RCJ7Y, NGK BPMR7A
Electrode gap 0.5 mm / 0.02 "
Torque, max. 2 Nm/6300 rpm
Lubricants
Oil tank volume 0.25 lit / 0.5 US pint
Oil pump type Fixed flow
Vibration & noise data
Equivalent vibration level (ahv, eq) front / rear handle 3.8/4.2 m/s²
Sound pressure level at operators ear 102 dB(A)
Sound power level, guaranteed (LWA) 114 dB(A)
Cutting equipment
Chain pitch .325"
Chain speed at 133% of maximum engine power speed 23 m/s / 75.46 fts
Recommended bar length, min-max 33-46 cm / 13"-18"
Chain gauge 0.05 "
Sprocket type Spur 7
Bar mount Small
Overall dimensions
Weight (excl. cutting equipment) 4.2 kg / 9.2 lbs

Product Files

Husqvarna 435 Manual
