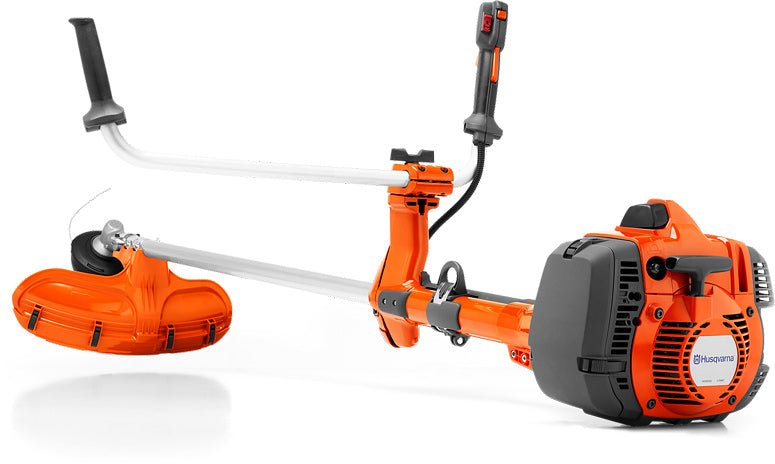

Professional brushcutter with high performance as well as sensational ergonomics and manoeuvrability. The X-Torq® engine provide raw power and excellent fuel economy.Optimized shaft length and bevel gear angled 35 degrees.Delivered with Balance X harness.
Specification
SKU |
966015901 |
MANUFACTURER |
Husqvarna |
WEIGHT |
7.1kg + |
ENGINE CAPACITY |
40cc - 49cc |
ENGINE TYPE |
2-Stroke |
Features
X-Torq® engine

The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.
Adjustable handle bar

Adjustable and ergonomically designed handlebar for best comfort.
Trio-Balance

Ergonomic harness with broad back support, shoulder straps and hip belt that distributes the load over a larger area.
Long shaft

Long shaft providing extended reach, facilitating grass clearing.
Optimised centre of gravity

Improved balance thanks to the fuel tank placement in front of the engine.
Smart Start®

The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Auto return stop switch

When the machine is turned off, the stop button automatically returns to start position for trouble free start.
Ergonomic design

Angled handle bar and comfort handles provides excellent grip and working position.
Combi-guard

The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.
Comfort handle
Soft-grip handles for optimum comfort.
Easy switch of cutting equipment

Magnetic locking pin holder facilitates switch of cutting equipment.
High offset post
High offset post increases freedom of movement when working on slopes.
LowVib®

Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.
Transparent fuel tank

Transparent fuel tank for checking the fuel level.
Fuel pump

Fuel pump designed for easy starting.
Grass bevel gear

Bevel gear designed with high torque and the cutting equipment parallell to the ground for best cutting performance
Adjustable harness hook eyelet

Adjustable eye let for best balance
Ergonomic handle
Comfortable handle design.
Soft grip handles
/features/m110-03xx/m110-0352b.ashx)
Soft grip handles for comfortable use
Tap 'n Go

Heavy duty twin line cutting system with Tap 'n Go for quick line feed.
Technical Data
Technical data |
Engine specification |
Cylinder displacement |
45.7 cm³ / 2.8 cu.inch |
Cylinder bore |
42 mm / 1.7 inch |
Cylinder stroke |
33 mm / 1.3 inch |
Power output |
2.1 kW |
Maximum power speed |
9000 rpm |
Fuel tank volume |
0.9 lit / 30.43 fl oz |
Fuel consumption |
450 g/kWh |
Fuel consumption |
1 kg/h / 2.2 lbs/h |
Ignition module air gap |
0.3 mm / 0.01 " |
Idling speed |
2700 rpm |
Spark plug |
NGK CMR6H |
Electrode gap |
0.5 mm / 0 " |
Clutch engagement speed |
3900 rpm (±120 rpm) |
Lubricant type |
Husqvarna 2 stroke or equiv. at 50:1 |
Maximum rpm output shaft |
8800 rpm |
Output shaft thread |
M12x1.75V |
Lubricants |
Lubricant type (bevel gear) |
Biodegradable grease |
Vibration & noise data |
Equivalent vibration level (ahv, eq) left / right handle |
3.2/2.9 m/s² |
Sound pressure level at operators ear |
101 dB(A) |
Sound power level, guaranteed (LWA) |
117 dB(A) |
Transmission data |
Gear ratio |
1:1.4 |
Drive gear angle |
35 ° |
Equipment |
OEM Trimmer head |
T45X M12 |
OEM Grass blade |
Multi 300-3 |
OEM Harness |
Balance X |
Overall dimensions |
Weight (excl. cutting equipment) |
8.9 kg / 19.62 lbs |
Tube length |
1483 mm / 58.4 inch |
Tube diameter |
32 mm / 1.3 " |
