Product Information

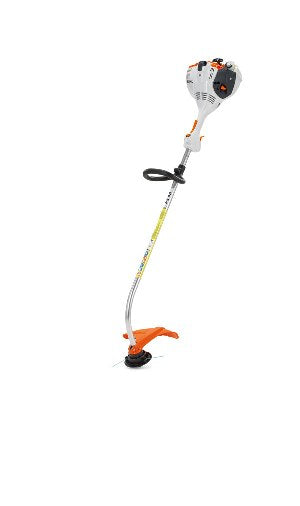

The lightest brushcutter of the new generation. Modern appearance, convenient operation and very simple starting procedure are the highlights of the new generation STIHL grass trimmer range. The number of steps needed to start the machine has been drastically reduced. The frustration of a flooded engine is virtually eliminated. New 2-stroke engine with stratified charge allows fast acceleration, low emissions, reduced fuel consumption. With bent shaft, loop handle and AutoCut mowing head ideally for trimming small areas of grass and around obstacles.

Specification

SKU

41440112309

SIZE

No

MANUFACTURER

Stihl



Features

Reduced-emission engine technology

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

Manual fuel pump (Purger)

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

Simplified starting system

Simply set the choke, pump the fuel primer, pull the starter cord and away you go! The running machine then switches off after a brief press of the stop button. Once the machine is at a standstill, the ignition activates again automatically. Thus the ignition is always ready for starting.

Multi-function control handle

Easy, comfortable thumb-operated control means the operator's hand never leaves the handle.

Technical Data

Sound power level with metal tool dB(A) 1)

109

Sound pressure level with metal tool dB(A) 1)

97

Power output hp

1

Performance kW

0.7

Displacement cm3

27.2

Weight kg 2)

4.4

Sound pressure level with plastic tool dB(A) 1)

94

Sound power level dB(A) 1)

107

Vibration value, right with plastic tool m/s2 3)

6.4

Vibration value, left with plastic tool m/s2 3)

7

Total length cm 4)

145

Cutting diameter mm

380

Tank volume l

0.34

Displacement cm³

27.2

Power output kW/bhp

0.7/1.0

Weight kg 5)

4.4

Standard cutting tool

AutoCut C 5-2

1) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
2) Without fuel, cutting tool and without protection
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Without cutting tool
5) without cutting tool and deflector

 Product Files

Download Stihl Manual
