New Kubota LX351 Compact Tractor 35hp, ROPS, HST, Kubota LX Series

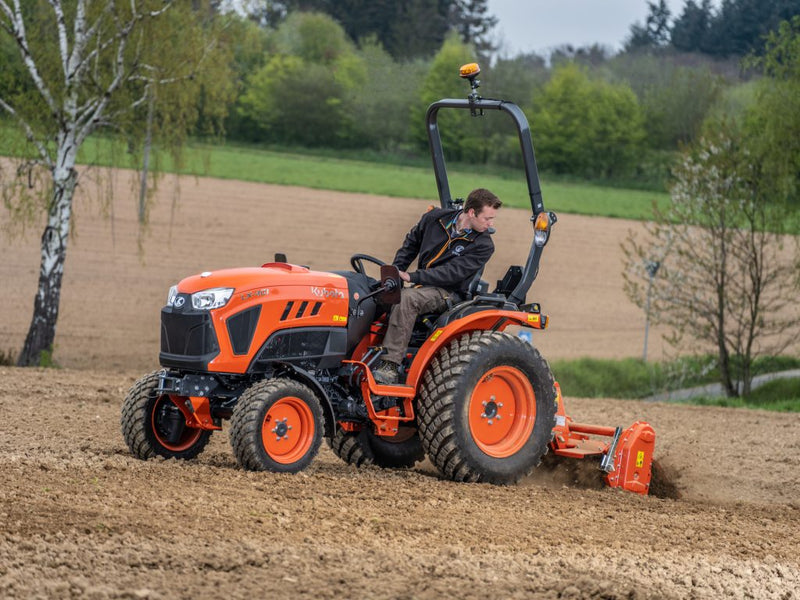

Kubota LX351 Tractor 35hp, HST, ROPS

Kubota LX Series, a range of multi-purpose compact tractors that allow users to handle a wide variety of tasks ranging from snow removal and lawn mowing to material handling and soil work, among others. The new Kubota LX401 tractor features a Stage V engine with CRS, EGR and DPF and will be available in 4 different models. The LX-351 Rear ROPS and LX-351 Cab, with 35 hp and a HST 3-range transmission, and the LX-401 Rear ROPS and LX-401 Cab, featuring  40hp, and a 3-range HST transmission.

Kubota’s LX351 35hp modern 4-cylinder diesel engines meet the latest EU Stage V emissions standard and boast impressively low fuel consumption.

Kubota’s LX351 new 3-stage HST transmission guarantees precise, efficient power transmission for smooth but responsive operation.

The Kubota LX351 compact tractor cabin models offer innovative and useful new features to give you an even more comfortable and ergonomic working environment.

With the high-performance hydraulic system of the new LX Series, you can work productively with a wide range of implements.

Optional attachments for the Kubota LX351 35hp compact tractor such as the LA545 front loader and Kubota midmounted mower deck significantly expand the range of applications and capacity of the LX Series.

Kubota LX Brochure

#Technical data

Model LX-351 LX-401
Engine
Model V1505-CR-TE5
Type Direct injection, vertical, water-cooled, 4 cycle diesel
Number of cylinders 4
Engine power ECE R120 kW (PS) 25.6 (34.8) 29.3 (39.8)
Total displacement cc 1,498
Maximum torque Nm (kgf m) 111.0 (11.3) 117.5 (12.0)
Rated revolution rpm 2,700
Fuel tank capacity l 32
Travelling system
Transmission Main hydrostatic transmission, 3 ranges
Tires (turf) Front 24 x 8.50–14
Rear 13.6–16
Steering Hydraulic power steering
Braking system Wet disk type
Minimum turning radius with brake m 2.2
PTO
PTO power kW (PS) 21.3 (29.0) 24.3 (33.0)
Rear PTO SAE 1-3/8,6 splines
PTO/engine speed rpm 540/2,670, 540E/1960
Mid PTO USA No. 5 (Kubota 10-tooth) involute spline
PTO/engine speed rpm 2,460/2,700
Hydraulic unit
Pump capacity l/min 3P: 20.4, power steering: 15.4
3-point hitch SAE category 1
Hydraulic control system Position control
Max. lift force At lift points kg 1,150
600 mm behind lift points kg 890
Remote hydraulic control 4 double acting valve (M.F.V.) 2 front/2 rear
Dimensions
Overall length without 3P (rops/cab) mm 2,983
Overall width
minimum
tread
rops mm 1,339
cab mm 1,311
Overall height rops mm 2,386
cab mm 2,167
Wheelbase (rops/cab) mm 1,695
Minimum ground clearance mm 243
Tread Front (rops/cab) mm 1,082
Rear (rops/cab) mm 992 - 1056 / 964 - 1056
Weight (rops/cab) kg 1,015/1,1185

Front loader model LA545
Fitting to base machine LX-351/LX-401
Manufacturer Kubota
Max. lift height (to bucket pivot pin) mm 2,187
Max. lift height (under level bucket) mm 2,040
Clearance with bucket dumped mm 1,769
Max. dump angle ° 37
Bucket rollback angle ° 31
Digging depth mm 126
Overall height in carrying position mm 1,153
Max. lift capacity kg 625
Breakout force (at pivot point) kN 9.93
Weight kg 204
