Husqvarna 522HD60X Fine Cut Double Sided Hedge Trimmer 60cm

Save £157.50

RPP:
£565.83

(Ex. VAT)

Our Price:
£408.33

(Ex. VAT)

£490.00

(Inc. VAT)

  • Order by 2pm for same day despatch
  • Delivery within 1-4 days
  • Secure payments
  • 40 years experience

Description

Description

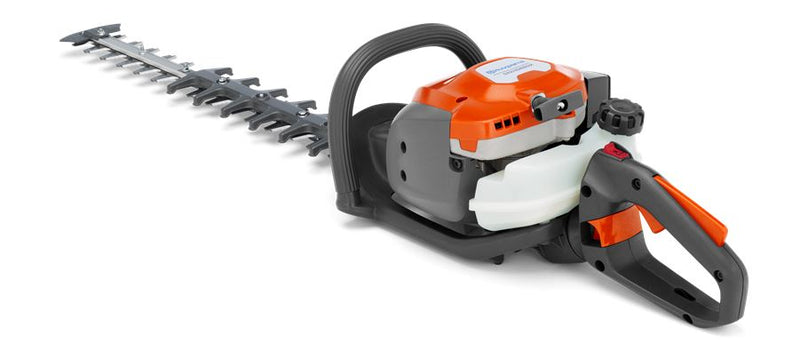

A 21.7cc, double-sided hedge trimmer with a 60 cm cutter bar and high torque gear for tougher cuts. The multi-position handle and impressively low weight combined with the slim, balanced design and low vibration levels provide excellent handling, while the high capacity, high-speed professional knife blades, open blade guard and impressive power output allows for excellent cutting performance.
Features
522HDR60X
Take on the overgrown
Thanks to the high-torque gear and the coarse-cut blades, you’ll be able to take on dense or overgrown hedges.
522H**
Long life gear components
The gear components have been developed for long life under tough conditions.
Fuel pump
Fuel pump designed for easy starting.
522HDR75S
Large, two-stage air filter
The unloosable two-stage air filter in dual materials and with a large area provide less cost for service and less engine wear.
522HDR75S
Multi position handle
The rear handle can be put in multi positions to facilitate cutting the sides and top of hedges.
125L, 125C, 125LD, 325LDx, 325HE4x
Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.
522HDR60X
Intuitive choke
Starting a cold engine is easier with the intuitive choke which is easy to reach and set
522HD60S
Low noise engine
Effective low noise engine creates less disturbance in the work area

Certifications

Cert machine dir. 2006/42/EC Decl. No.
SEC/18/2518

Lubricants

Fuel consumption
620 g/kWh
Fuel consumption
0.36 kg/h
Fuel tank volume
0.45 l
Power source
Petrol
Power/fuel type
Gasoline

Capacity

Clutch engagement speed (±120)
4400 rpm
Clutch engagement upper limit
6000 rpm
Cutting speed
3200 cut/min
Idling speed
3000 rpm
Idling upper limit
4400 rpm
Maximum power speed
7800 rpm
Power output
0.6 kW
Racing speed lower limit
8200 rpm
Teeth opening
30.5 mm
Torque, max.
0.9 Nm
Torque, max. at rpm
6000 rpm

Dimensions

Article gross weight
6860 g
Article net weight
5340 g
Knife Length
60 cm
Product size height
18.6 cm
Product size length
110.5 cm
Product size width
24.6 cm
Weight
5.0 kg
Weight (excl. cutting equipment)
5.0 kg

Engine

Cylinder bore
32 mm
Cylinder displacement
21.7 см³
Cylinder stroke
27 mm
Ignition module air gap
0.3 mm
Electrode gap
0.5 mm
Engine Family CARB
LHVXS.0224EC
Engine Family EPA
LHVXS.0224EC
Spark plug
NGK CMR6A

Equipment

Gear ratio
5.70
Gear ratio
1

Packaging

Packaging height
210 mm
Packaging length
1320 mm
Packaging width
260 mm
Quantity in Master pack
1

Vibration

Daily Vibration (Aeqv)
2.8 m/s²
Daily Vibration Exposure (A8)
1.9 m/s²
Daily Vibration Time (Time factor)
3.5 h
Equivalent vibration level (ahv, eq) front handle
2.8 m/s²
Equivalent vibration level (ahv, eq) rear handle
1.3 m/s²

Sound and noise

Sound power level, guaranteed (LWA)
102 dB(A)
Sound power level, measured
101 dB(A)
Sound pressure level at operators ear
93 dB(A)

Emission Data CARB

Engine Family EPA
LHVXS.0224EC
Engine Family CARB
LHVXS.0224EC
Exhaust emissions (CO average)
198.84 g/kWh
Exhaust emissions (CO₂ average)
1499 g/kWh
Exhaust emissions (HC average)
33.66 g/kWh
Exhaust emissions (NOx average)
0.16 g/kWh

Emission Data EPA

Exhaust emissions (CO average)
198.84 g/kWh
Exhaust emissions (CO FEL)
536 g/kWh
Exhaust emissions (CO₂ average)
1499 g/kWh
Exhaust emissions (HC average)
33.66 g/kWh
Exhaust emissions (NOx average)
0.16 g/kWh

Emission Data EU

Exhaust emissions (CO average)
246.36 g/kWh
Exhaust emissions (CO₂ average)
1344 g/kWh
Exhaust emissions (CO2 EU V)
1344 g/kWh
Exhaust emissions (HC average)
36.28 g/kWh
Exhaust emissions (NOx average)
0.23 g/kWh
