Description
Description

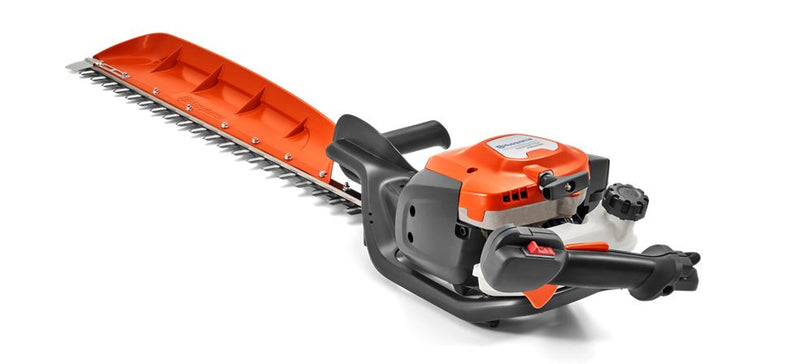

Husqvarna 522HS75X is a 22cc, single-sided petrol hedge trimmer with a 75 cm cutter bar and high-speed gear, designed for professional users. Equipped with a leaf catcher that saves clean-up time. The comfortable handle and low weight combined with the slim, well-balanced design provides comfort, while the high-capacity blade and impressive power output allows for result in reliability and high work output.
Features
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.
Auto return stop switch
Stop switch automatically resets to the ON position for trouble-free starting.
Sharp teeth
Sharp and robust cutting teeth for high productivity and long product life.
An efficient job starts with a sharp blade
The hardened steel blades, optimized edge angles and the high knife speed increase productivity when trimming.
Better result in less time
The integrated leaf catcher on our single-side hedge trimmers helps to remove clippings while cutting which means less time spent after-cleaning
Long life gear components
The gear components have been developed for long life under tough conditions.
Two-stage air filter
The unloosable two-stage air filter in dual materials provide less cost for service and less engine wear.
Fuel pump
Fuel pump designed for easy starting.
Intuitive choke
Starting a cold engine is easier with the intuitive choke which is easy to reach and set
Low noise engine
Effective low noise engine creates less disturbance in the work area
Lubricants
Fuel consumption
620 g/kWh
Fuel consumption
0.36 kg/h
Fuel tank volume
0.45 l
Power source
Petrol
Power/fuel type
Gasoline
Capacity
Clutch engagement speed (±120)
4400 rpm
Clutch engagement upper limit
6000 rpm
Cutting speed
4400 cut/min
Idling speed
3000 rpm
Idling upper limit
4400 rpm
Maximum power speed
7800 rpm
Power output
0.6 kW
Racing speed lower limit
8200 rpm
Teeth opening
30 mm
Dimensions
Knife Length
75 cm
Product size height
33.3 cm
Product size length
121.4 cm
Product size width
18.4 cm
Weight
5.0 kg
Weight (excl. cutting equipment)
5.0 kg
Engine
Cylinder bore
32 mm
Cylinder displacement
21.7 см³
Cylinder stroke
27 mm
Ignition module air gap
0.3 mm
Electrode gap
0.5 mm
Engine Family CARB
LHVXS.0224EC
Engine Family EPA
LHVXS.0224EC
Spark plug
NGK CMR6A
Equipment
Gear ratio
4.09
Gear ratio
1
Packaging
Packaging height
210 mm
Packaging length
1245 mm
Packaging width
305 mm
Quantity in Master pack
1
Vibration
Daily Vibration (Aeqv)
5.5 m/s²
Daily Vibration Exposure (A8)
3.6 m/s²
Daily Vibration Time (Time factor)
3.5 h
Equivalent vibration level (ahv, eq) front handle
5.5 m/s²
Equivalent vibration level (ahv, eq) rear handle
3.0 m/s²
Sound and noise
Sound power level, guaranteed (LWA)
102 dB(A)
Sound power level, measured
101 dB(A)
Sound pressure level at operators ear
93 dB(A)
Emission Data CARB
Engine Family EPA
LHVXS.0224EC
Engine Family CARB
LHVXS.0224EC
Exhaust emissions (CO average)
198.84 g/kWh
Exhaust emissions (CO₂ average)
1499 g/kWh
Exhaust emissions (HC average)
33.66 g/kWh
Exhaust emissions (NOx average)
0.16 g/kWh
Emission Data EPA
Exhaust emissions (CO average)
198.84 g/kWh
Exhaust emissions (CO FEL)
536 g/kWh
Exhaust emissions (CO₂ average)
1499 g/kWh
Exhaust emissions (HC average)
33.66 g/kWh
Exhaust emissions (NOx average)
0.16 g/kWh
Emission Data EU
Exhaust emissions (CO average)
246.36 g/kWh
Exhaust emissions (CO₂ average)
1344 g/kWh
Exhaust emissions (CO2 EU V)
1344 g/kWh
Exhaust emissions (HC average)
36.28 g/kWh
Exhaust emissions (NOx average)
0.23 g/kWh
