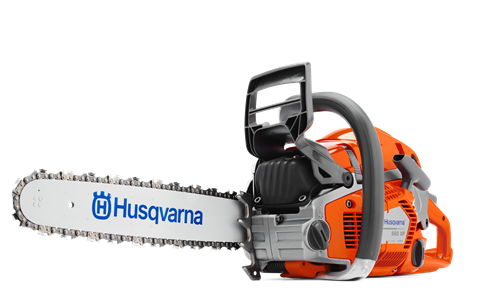

Husqvarna 560XP Chainsaw 15"

Save £221.75

RPP:
£907.50

(Ex. VAT)

Our Price:
£685.75

(Ex. VAT)

£822.90

(Inc. VAT)

  • Free delivery on orders over £150 (handheld equipment)
  • Secure payments
  • 40 years experience

Description

Husqvarna 560 XP® is developed for professional loggers and skilled land owners. The saw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation. Our unique X-Torq® engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission. RevBoost™ provide instant high chain speed for extra efficient de-limbing.

Specification

SKU 966009115
MANUFACTURER Husqvarna
CHAINSAW OPTIONS Easy Start
WEIGHT 5.1kg - 7kg
ENGINE CAPACITY 60cc - 69cc
CUTTING LENGTH: 17" (43cm) - 20" (50cm)
ENGINE TYPE 2-Stroke



Features

X-Torq®
Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.


RevBoost™
Rapid acceleration and higher chain speed for best limbing performance.

Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.


AutoTune
AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.


Air Injection
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.


LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.


Additional Features

  • Adjustable oil pump Adjustable oil pump makes it easy to set the chain lubrication according to your needs.
  • Combined choke/stop control Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.
  • Magnesium crankcase Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
  • Snap-lock cylinder cover Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
  • Smart Start® The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
  • Felling marks Distinct, coloured felling marks for better felling precision.
  • Fuel pump Fuel pump designed for easy starting.
  • Inertia chain brake Effective inertia-activated chain brake.
  • Quick-release air filter Facilitates cleaning and replacement of the air filter.
  • Side-mounted chain tensioner Side-mounted chain tensioner makes chain adjustment quick and easy.
  • Quick release air filter cover Quick release cover saves time when cleaning or changing spark plug.
  • Three-piece crankshaft Forged three-piece crankshaft for maximum durability for the toughest applications.
  • Slimmed-down design Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.
  • Visible fuel level Transparent fuel indicator makes it easy to check fuel level.
  • Retained bar nuts The retaining function prevents loosing the bar nuts.

Technical Data

Engine specification
Cylinder displacement 59.8 cm³ / 3.65 cu.inch
Cylinder bore 46 mm / 1.81 inch
Cylinder stroke 36 mm / 1.42 inch
Power output 3.5 kW
Maximum power speed 9600 rpm
Fuel tank volume 0.65 lit / 22 fl oz
Fuel consumption 494 g/kWh
Ignition module air gap 0.3 mm / 0.01 "
Idling speed 2800 rpm
Spark plug NGK CMR6H
Electrode gap 0.5 mm / 0.02 "
Torque, max. 3.65 Nm/8100 rpm
Lubricants
Oil tank volume 0.33 lit / 0.7 US pint
Oil pump type Adjustable flow
Vibration & noise data
Equivalent vibration level (ahv, eq) front / rear handle 4.4/5.3 m/s²
Sound pressure level at operators ear 106 dB(A)
Sound power level, guaranteed (LWA) 118 dB(A)
Cutting equipment
Chain pitch .325"
Chain speed at 133% of maximum engine power speed 28.3 m/s / 92.85 fts
Recommended bar length, min-max 33-51 cm / 13"-20"
Chain gauge 0.058 "
Sprocket type Rim 7
Bar mount Small
Overall dimensions
Weight (excl. cutting equipment) 5.9 kg / 13.01 lbs

Battery
Battery type Li-Ion
Battery voltage 36.5 V
Motor type BLDC (brushless)
Lubricants
Oil tank volume 0.2 lit / 0.42 US pint
Oil pump type Automatic
Oil pump capacity 3.5-6.5 ml/min
Vibration & noise data
Equivalent vibration level (ahv, eq) front / rear handle 3.369/3.82 m/s²
Sound pressure level at operators ear 86 dB(A)
Sound power level, guaranteed (LWA) 100 dB(A)
Cutting equipment
Chain pitch 3/8"
Recommended bar length, min-max 30.48-35.56 cm / 12"-14"
Chain speed at max power 11.5 m/s / 37.73 fts
Bar mount Small
Overall dimensions
Weight (excl. battery and cutting equipment) 3 kg / 6.61 lbs
Logistical Data
Weight incl. packaging 5.5 kg / 12.13 lbs
Product size, LxWxH 800x235x240 mm / 31.5x9.25x9.45 inch
Packaging size, LxWxH 520x265x245 mm / 20.47x10.43x9.65 inch
Pallet Size, LxWxH 1095x1060x250mm / 43.11x41.73x9.84inch
Pallet quantity 32
Products per 20ft container 640 pcs
Products per 40ft container 1048 pcs
