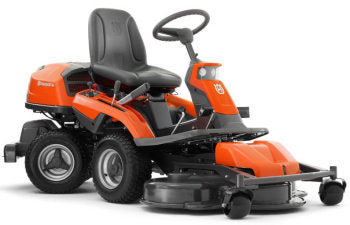

Husqvarna Rider R316TsX AWD lawn mower our most powerful 300-series, the Husqvarna R316TsX Rider AWD features the new low sound technology which gives improved sound quality and enables increased engine power. The result is higher blade and ground speed and thereby extra efficient operation. Husqvarna Rider R 316TsX AWD  will carry a 103 cm Combi cutting deck, offering first-class BioClip® or rear ejection cutting. The Husqvarna Rider R316TsX AWD is suitable for landowners. All-Wheel-Drive remarkably increases and secures handling on uneven, wet and slippery areas as well as on slopes. In short – this Husqvarna Rider r316tawd  R316TsX AWD Rider gives you the ultimate driving experience. The Husqvarna R316TsX AWD can easily be fitted with a number of attachments such as broom, flail mower, snow blade and snow thrower, for maximum output throughout the year. Features like power steering, pedal-operated hydrostatic transmission, headlights and cutting deck service position, makes operating and servicing this Rider a pleasure.


Articulated steering
The unique articulated steering system of the Husqvarna R316TsX AWD allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 94, 103 or 112 cm Combi cutting decks for efficient BioClip® and rear ejection cutting.

Versatile usage
A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Service position
Service position on the cutting deck facilitates cleaning and service.

Attachment frame
Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.

Additional Features
  • Power steering Power steering makes driving less strenuous and more enjoyable.
  • Versatile usage A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.
  • External fuel cap Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.
  • Easy-access controls Controls are easy accessible and designed for optimum user comfort.
  • Easy-access cutting height lever The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
  • Rear ejection The rear ejection cutting mode provides high-effective cutting performance on areas that are cut less frequently.
  • The engine behind driver Thanks to the rear-mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area.
  • Pivoting support wheels The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.
  • Easy-access service points The tilting hood and easy-access servicing points make maintenance and servicing easy.
  • Headlights Two 20W halogen lights provide efficient work light.
  • Comfortable driver's position With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable "sit-in" feeling for the user.
  • Attachment frame Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
  • Pedal-operated hydrostatic transmission Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control.
  • Automatic blade engagement The blades are engaged automatically when you lower the cutting deck.
  • BioClip® BioClip® (mulching) provides excellent cutting results on frequently cut areas. The grass is cut into fine pieces that quickly decompose and return to the lawn as natural fertiliser.
  • Four large wheels Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
  • Floating cutting deck The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
  • Adjustable pitch angle Possible to fine-tune the cutting deck position, to ensure perfect cutting results at all times.
  • Transparent fuel tank Large, transparent fuel tank makes it easy to check the fuel level.
  • Pivoting rear axle The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Technical Data


Engine manufacturer Kawsasaki
Engine name  Series V-Twin
Engine type
Net power at preset rpm 9.8 kW @ 3100 rpm
Cylinder displacement 603 cm³ / 36.8 cu.inch
Cylinders 2
Engine cooling Air
Generator 15 A
Battery 12 V 24 Ah
Fuel Type Gasoline
Fuel tank volume 12 lit / 3.2 gal.
Engine lubrication type Full pressure
Oil type SAE10-W30
Oil capacity 1.7 lit / 57.5 fl oz
Oil filter Yes
Drive system
Transmission type Hydrostatic AWD
Transmission manufacturer Kanzaki
Transmission model K574
Drive method Pedal-operated
Speed forward, min-max 0-9.5 km/h / 0-5.9 mph
Speed reverse, min-max 0-9.5 km/h / 0-5.9 mph
Safety limit slopes 10 °
Cutting deck
Uncut circle1 30 cm / 11.8 inch
Cutting width, Min-Max 94-112 cm / 37-44.1 inch
Optional cutting decks Combi 94, Combi 103, Combi 112
Cutting deck type Combi
Cutting deck material Steel
Cutting methods BioClip®/Rear discharge
Cutting height, min-max 25 - 75 mm / 1 - 3 inch
Cutting height steps 9 pcs
Blade engagement Automatic
Blades 3
Powder-coated cutting deck Yes
Hour meter Digital with pre-programmed service intervals
Seat material Vinyl
Seat suspension Yes
Seat back height High
Foldable seat Yes
Tyre dimensions, front 170/60-8
Tyre dimensions, rear 170/60-8
Wheelbase 88.7 cm / 34.9 "
Ground clearance 85 mm / 3.35 inch
Base machine, length 202 cm / 79.5 inch
Base machine, width 89 cm / 35 inch
Base machine, height 115 cm / 45.3 inch
Weight 248 kg / 546.74 lbs
Gross weight towed2 125 kg / 275.5 lbs
Sound and noise data
Sound pressure level at operators ear 84 dB(A)
Sound power level, measured 98 dB(A)
Sound power level, guaranteed (LWA) 99 dB(A)
Vibration level steering wheel 2.5 m/s²
Vibration level seat 0.7 m/s²
