Description

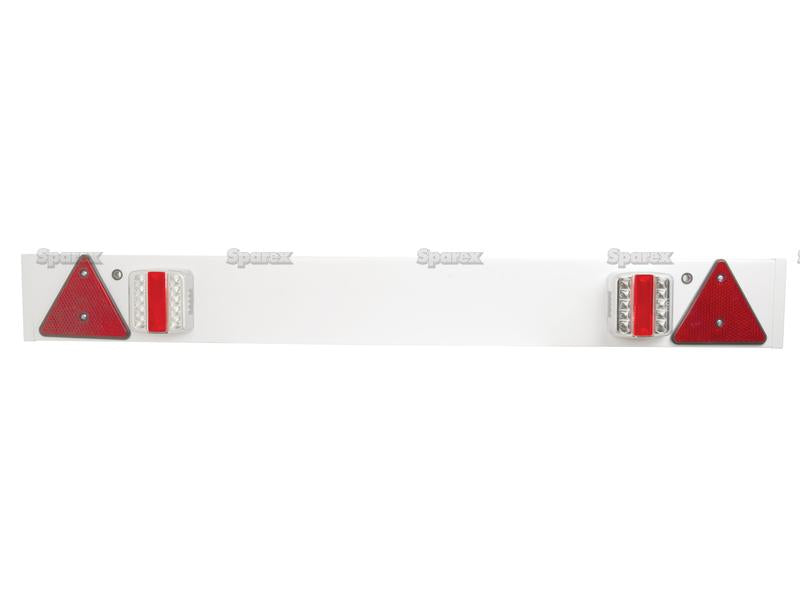

LED Lighting Board, Function: 4, Brake / Tail / Indicator / Number Plate, 12V ( S.26297)
Cable length: 7000mm
Fitted with: S.3400 Male 7 Pin Plug
Fixing: Bolt on
Overall length: 1200mm
Product Specifications
Bulb type : LED
Cable length ft : 23
Cable length Metres : 7
Cable length mm : 7000
CE Approved : No
Connection Type : None
E Approved : Yes
ECE Rating : Reg 10
Fitted with : S.3400 Male 7 Pin Plug
Fixing : Bolt on
Foglight : No
Function : 4, Brake / Tail / Indicator / Number Plate
Height cm : 14.8
Housing Material : Various Plastic Compounds
IP Rating : IP67
ISO Rating : No
Length ft : 4
Length M : 1.2
Lens Colour : Red
Lens Material : Plastic Safety Glass
Light source : LED
Lumens Effective : 9.6 - 63.8
Lumens Raw : 10.6 - 61.2
Lux Value : 1.8 - 10.7 @10m
Number of LEDs : 14 LEDs
Overall height mm : 20
Overall length mm : 1200
Overall width mm : 140
Power Consumption @ 12V : 0.08Amps
Replacement bulb : Led
Replacement lamp : S.26299 (4 Function)
Replacement lens : No
Replacement triangle : S.3869
RH or LH Fitment : RH & LH
RoHS Approved : Yes
SAE Approved : No
Shape : Rectangular
Tariff Code : 8539213000
Volts : 12V
Watts : 1W
With Noise Suppression : No
Working Temperature Degrees Centregrade : -30°C to 65°C
