Product Information

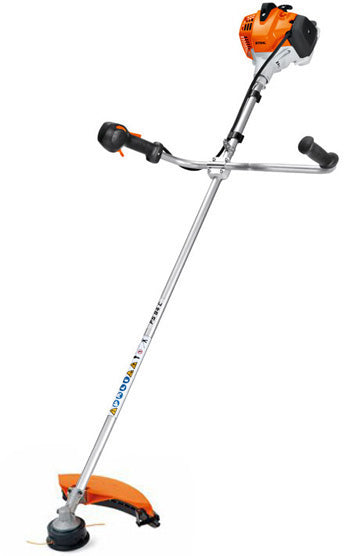

Lightest brushcutter in this segment. STIHL 1-point anti-vibration system, ErgoStart, bike handle, control handle with ECOSPEED partially loaded function, STIHL 2-MIX engine, straight shaft and shoulder harness.

Specification

SKU

41492000077

SIZE

No

MANUFACTURER

Stihl



Features

Reduced-emission engine technology

2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions.

Large fuel tank

The transparent fuel tank with a volume of 0.75 l ensures long working intervals with fewer fuel stops. The level is easily visible from the outside. Easy to refuel through a large, easily accessible tank opening.

Manual fuel pump (Purger)

A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

STIHL ErgoStart (E)

STIHL ErgoStart cuts the effort required to start the tool by half, while the starter cord can be pulled at just one third of the normal force. A coil spring between the starter cord and the crankshaft smoothes out force peaks, making them virtually undetectable through the cord itself.

Simplified starting system

Simply set the choke, pump the fuel primer, pull the starter cord and away you go! The running machine then switches off after a brief press of the stop button. Once the machine is at a standstill, the ignition activates again automatically. Thus the ignition is always ready for starting.

Bike handle

When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.

STIHL ECOSPEED

STIHL ECOSPEED enables the user to control the brushcutter engine speed individually on the operating handle.

Anti-vibration system

Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.

Technical Data

Performance kW

0.9

Performance PS

1.2

Capacity cm3

24.1

Weight kg 1)

4.9

Sound pressure level with mowing head dB(A) 2)

94

Sound pressure level with metal tool dB(A) 2)

93

Sound power level dB(A) 2)

107

Vibration value, left with mowing head m/s2 3)

4.7

Vibration value, left with metal tool m/s2 3)

4.3

Vibration value, right with metal tool m/s2 3)

3.5

Vibration value, right with mowing head m/s2 3)

4

Total length cm 4)

178

Tank volume l

0.54

Displacement cm³

24.1

Power output kW/bhp

0.9/1.2

Weight kg 5)

4.9

Standard cutting tool

GSB 230-2

1) Without fuel, cutting tool and without protection
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Without cutting tool
5) without cutting tool and deflector
