Description

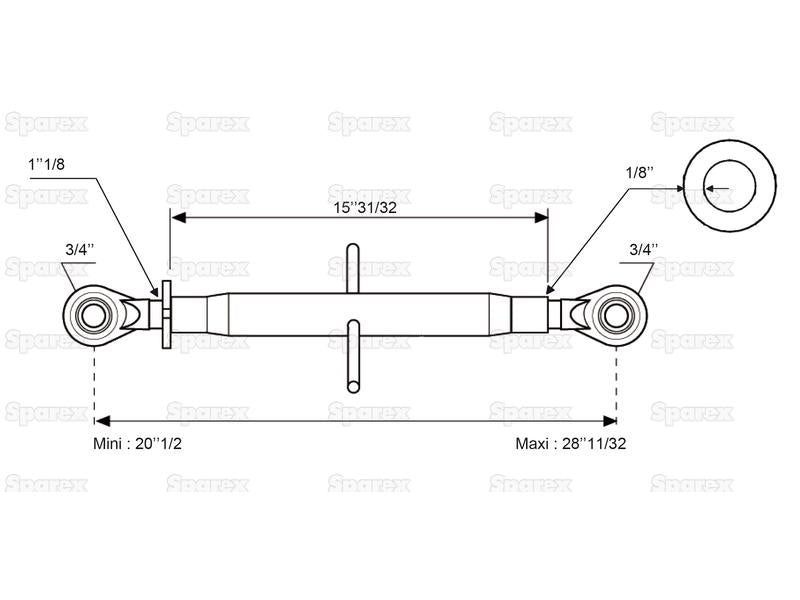

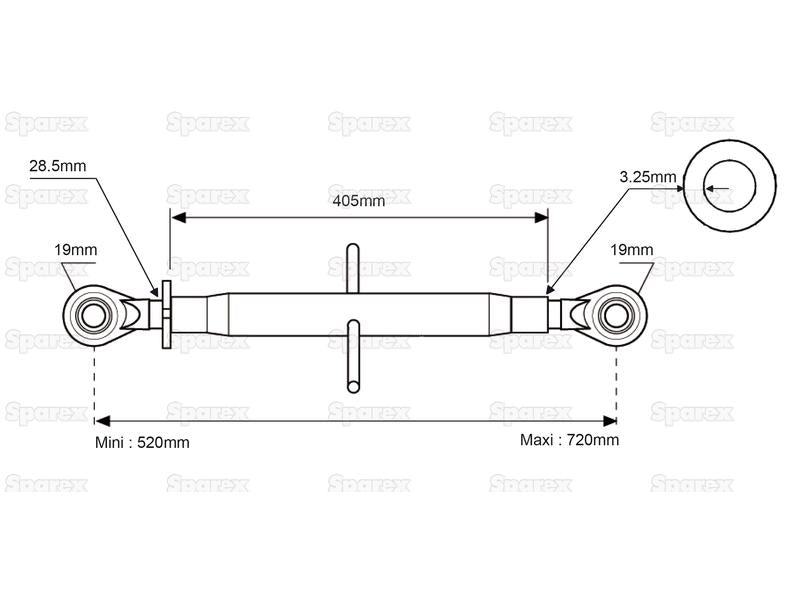

Tube length: 405mm,
Min. Length: 520mm,
Max. Length: 720mm,
Thread size: 1 1/8''
Product Specifications
Category : 1/1
Category Implement End : 1
Category Tractor End : 1
Centre Tube : S.330
Centre Tube Size mm : 42 x 3.25
Colour : Zinc
Implement End : Ball
Locking Collar : S.348
Maximum Length ins : 28 7/16
Maximum Length mm : 720
Minimum Length ins : 20 15/32
Minimum Length mm : 520
Replacement Implement End : S.343
Replacement Tractor End : S.342
Suitable for Tractors up to hp kW : 56hp (42kW)
Tariff Code : 8708999712
Thread size : 1 1/8''
Thread type : UNC
Tommy Bar : S.333
Tractor End: Ball
Tractor End Ball Width mm : 44.5
Tube Length ins : 16
Tube length mm : 405
Type : Standard
